CASE STUDIES
// VERIFIED_EXECUTION_LOG
CFD_SOLVER_OUTPUT_v2.0.DAT

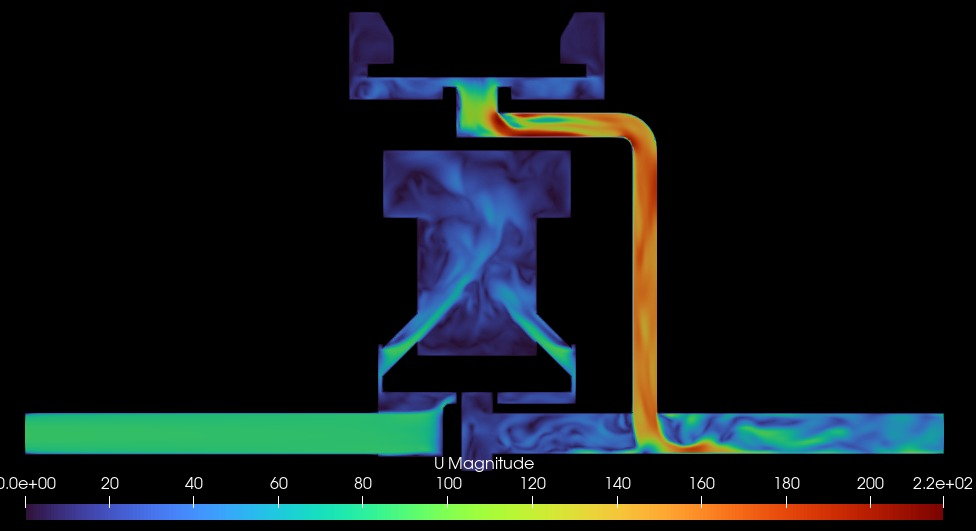

High-Pressure Valve Optimization
// ANALYSIS: Specialized CFD Flow Validation
// METRICS: Pressure Loss & Cavitation Risk
// INSIGHTS: Durability & Efficiency Hardening
// OUTCOME: Reduced Prototyping & Field Risk
THRUST_VECTOR_ANALYSIS_v1.0.SIM

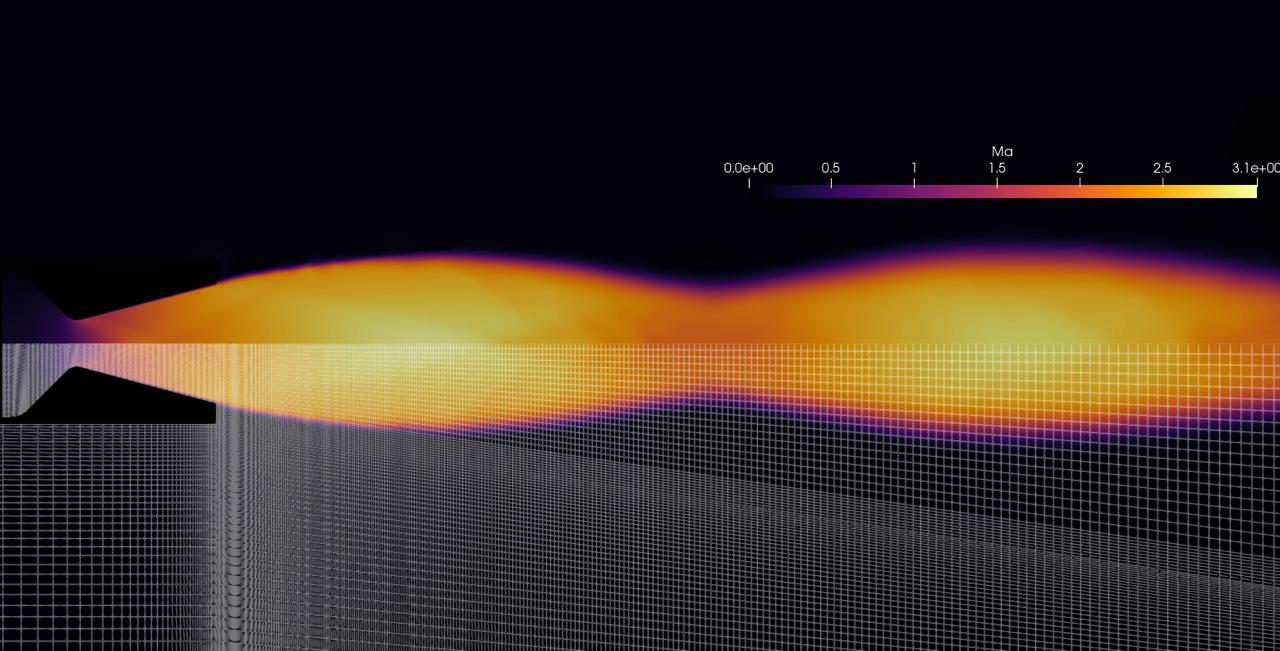

CD Nozzle Performance Validation
// METRICS: Thrust, Shock Position, Wall Temp
// OPTIMIZATION: Contour & Cooling Strategy
// HARDENING: Flow Separation Prevention
// VALIDATION: Virtual Test-Fire Simulation
THERMAL_TELEMETRY_v3.2.LOG

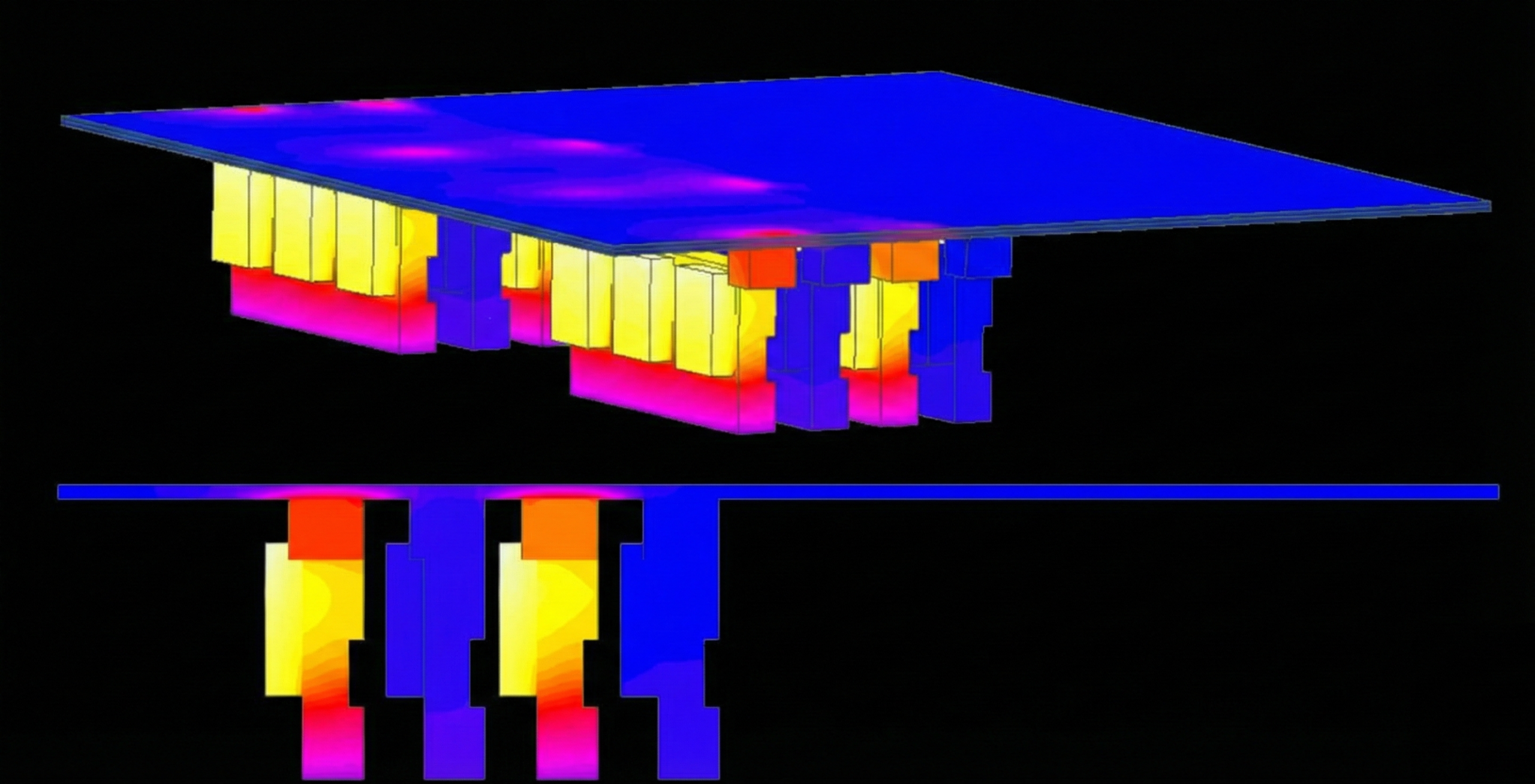

Electronics CHT & Derating Validation
// ANALYSIS: High-Fidelity CHT Gradient Mapping
// METRICS: Hotspot Identification & Junction Temp
// COMPLIANCE: ECSS / MIL-STD Voltage & Temp Derating
// VIRTUAL_V: Compliance-Focused Design Hardening
AERO_DRAG_COEFF_v1.4.SOLVE

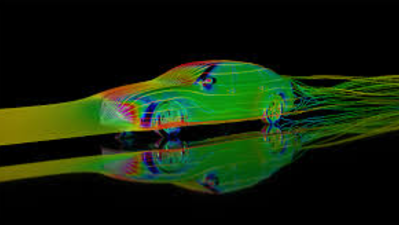

Automotive Aerodynamic Optimization
// SIMULATION: External Vehicle CFD Analysis
// METRICS: Drag Coefficient (Cd) & Lift Prediction
// FLUIDS: Underbody & Brake Cooling Flow
// VALIDATION: Virtual Wind Tunnel Synthesis
AERO_COEFF_v2.1.SOLVE

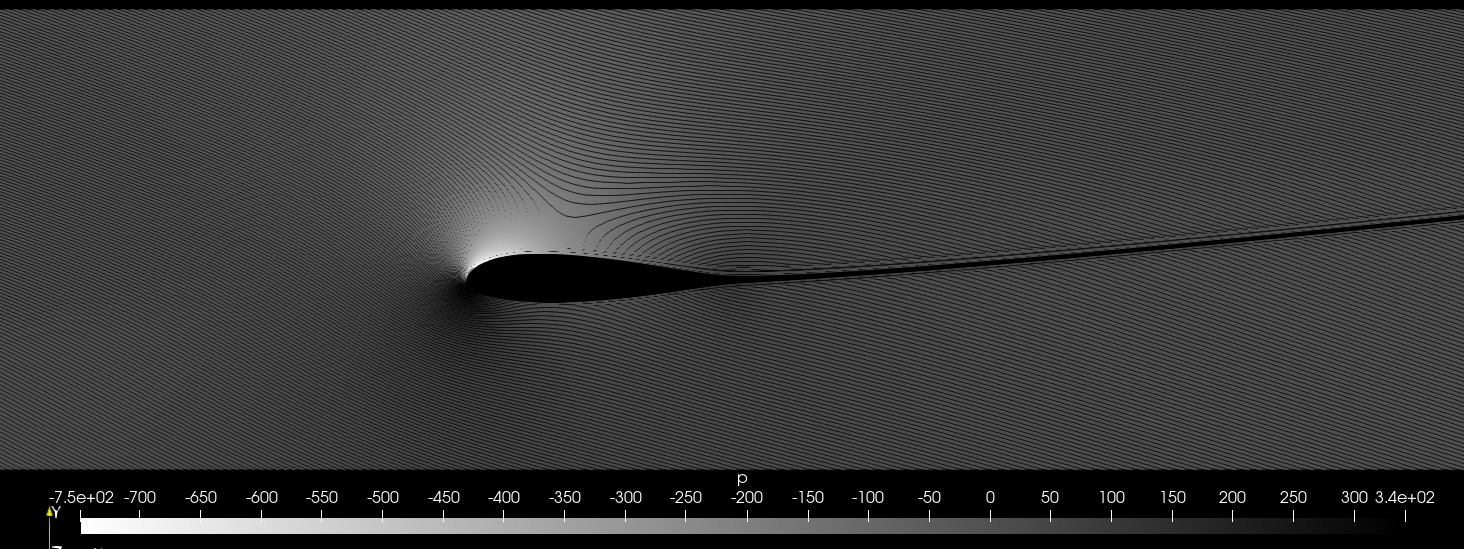

Airfoil Performance Optimization
// SIMULATION: Lift, Drag & Stall Characterization
// ANALYSIS: Boundary Layer & Flow Separation
// METRICS: Cl/Cd Ratio & Stability Profiling
// VIRTUAL_V: Data-Driven Design Refinement
STRUCTURAL_LOAD_v4.1.FEA
Pressure Vessel Stress Validation
// ANALYSIS: Expert Finite Element Analysis (FEA)
// COMPLIANCE: ASME Section VIII Standards
// METRICS: Von Mises Stress & Safety Factor
// OPTIMIZATION: Material Use & Fatigue Life
FLEXURE_STRESS_v2.4.FEA
FEA for Compliant Brackets
// SIMULATION: Flexure & Non-Linear Deflection
// ANALYSIS: Fatigue Life & Stress Distribution
// DURABILITY: Lifecycle Performance Validation
// OUTCOME: Failure Prevention & Accelerated Dev
PROPULSION_SPEC_v4.PDF
High-Reliability Embedded Controller (ECU)
// BUS: 10-34V DC Isolated
// TELEMETRY: CAN 2.0B + RS422
// SENSORS: I2C, RTD, NTC
// HARDENING: MIL-STD / ECSS Compliant
DRIVE_UNIT_REV_3.1_SiC_MOSFET.DAT

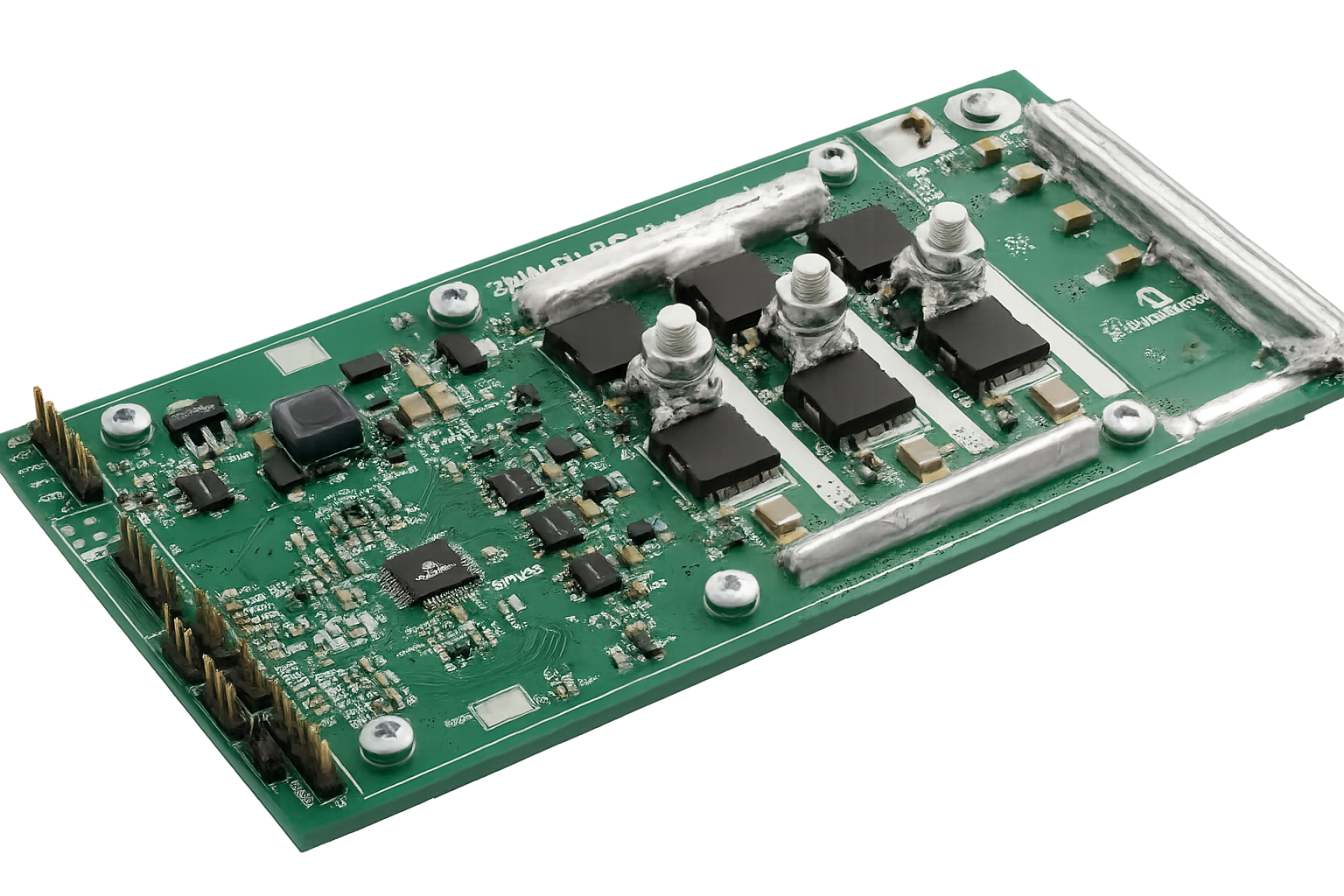

High-Performance BLDC Drive Systems
// TOPOLOGY: MOSFET & SiC MOSFET Switching
// CONTROL: Speed, Position & Torque Loop
// ALGORITHMS: Trapezoidal, Sinusoidal & FOC
// INTEGRATION: Multi-Sensor Fusion & EMI Hardening
PRECISION_MOTION_CONTROLLER_REV_1.0.DAT
Multi-Axis Stepper Drive Solutions
// RESOLUTION: 256+ Microstepping & StealthChop
// ALGORITHMS: Resonance Compensation & StallGuard
// FEATURES: CoolStep Energy Optimization
// INTERFACES: SPI, CAN, & Pulse/Direction Logic
POWER_CONVERSION_MODULE_REV_2.4.LOG

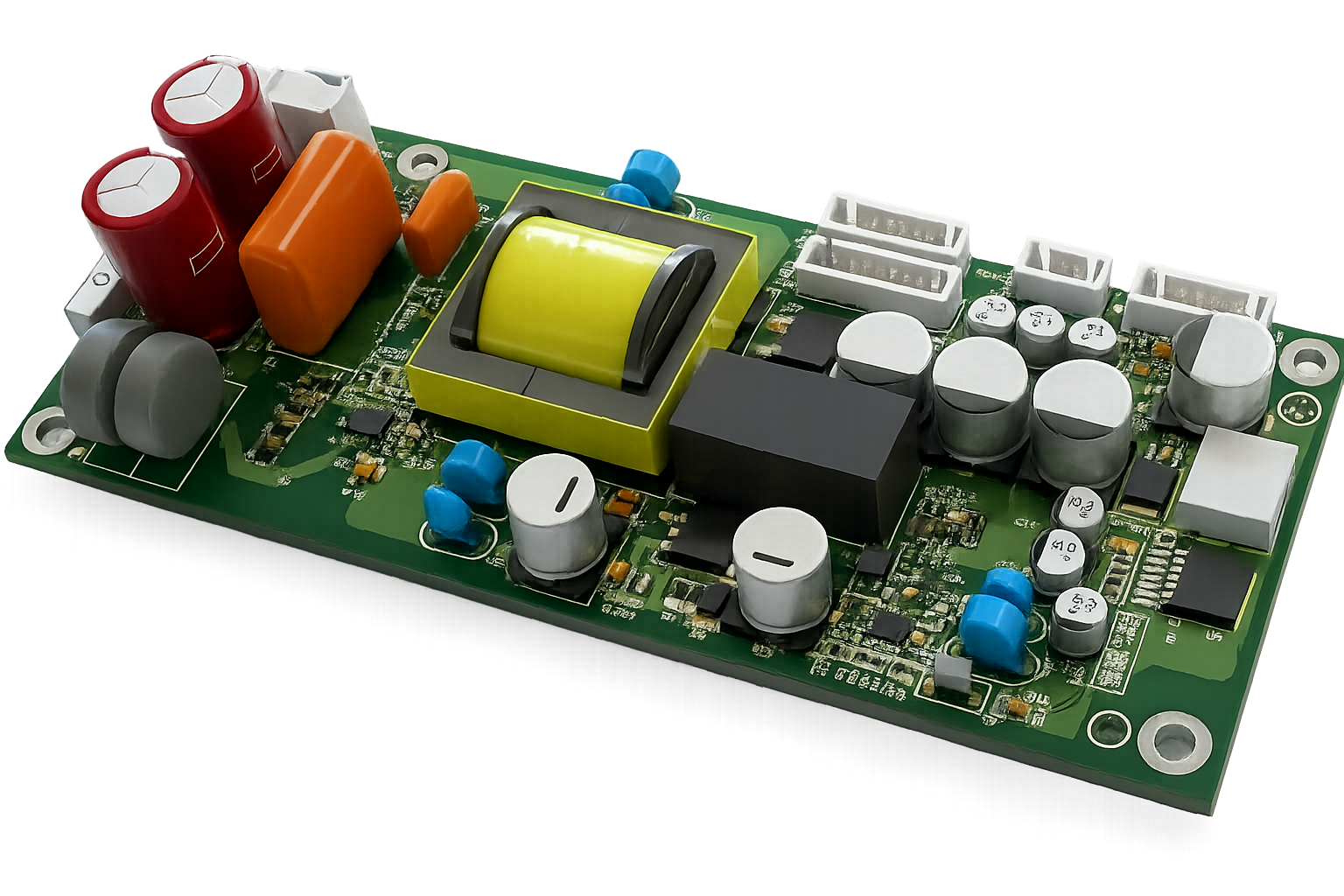

High-Efficiency DC-DC Power Modules
// TOPOLOGIES: Isolated (LLC, Flyback, Forward) & Non-Isolated
// PERFORMANCE: 95%+ Efficiency & High Power Density
// PROTECTION: OVP, OCP, OTP & Soft-Start Sequencing
// COMPLIANCE: Low-EMI Design & Thermal Stress Validated
ACTUATION_SYSTEM_REV_1.2.CAD

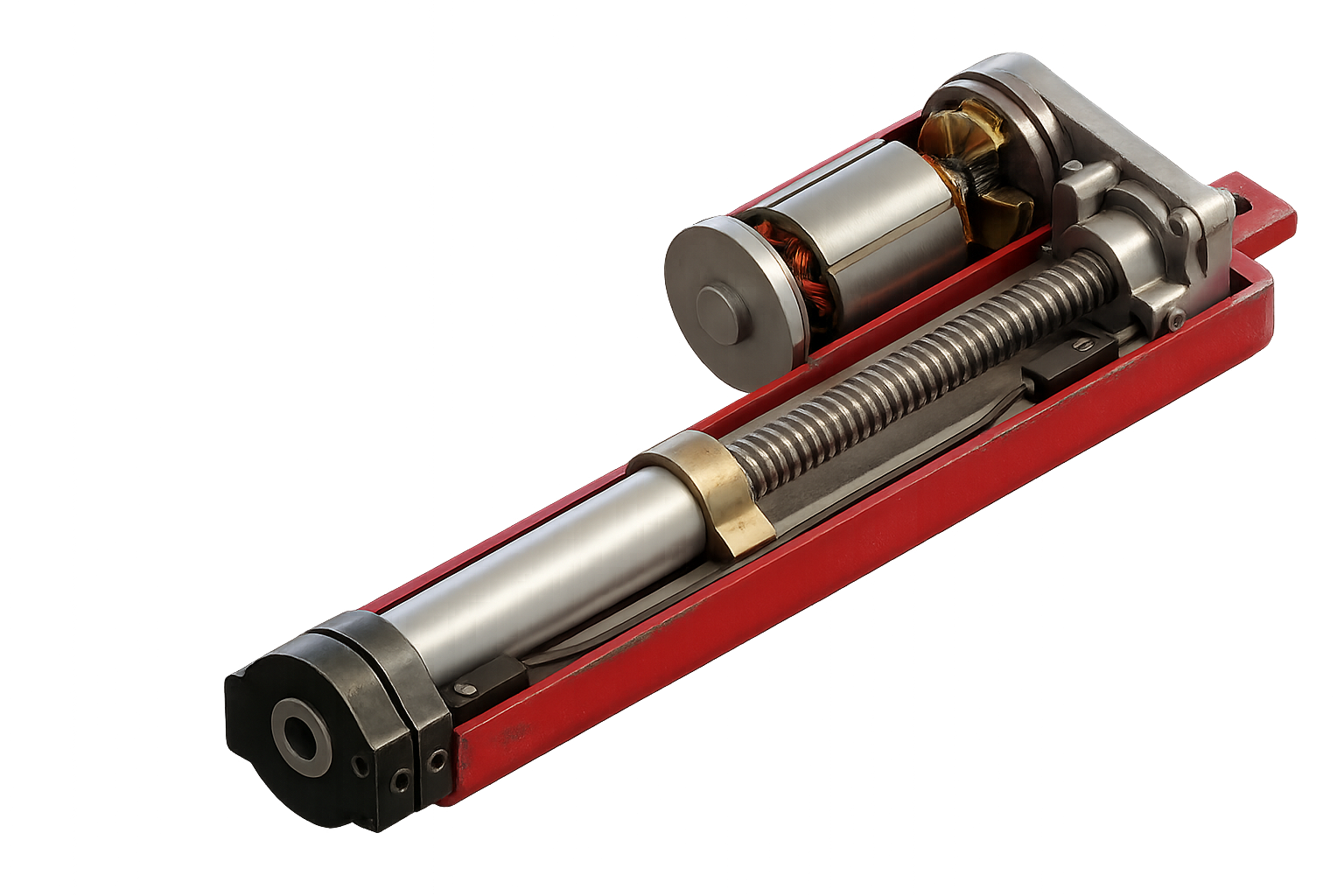

Precision Linear & Rotary Actuators
// LINEAR: Custom Lead-Screw & Acme Nut Solutions
// ROTARY: High-Torque Gearbox & Multi-Stage Reduction
// CONTROL: Integrated Limit Sensing & Position Feedback
// APPLICATIONS: Robotics, Aerospace & Industrial Automation
ENCLOSURE_SYSTEM_REV_1.0.CAD

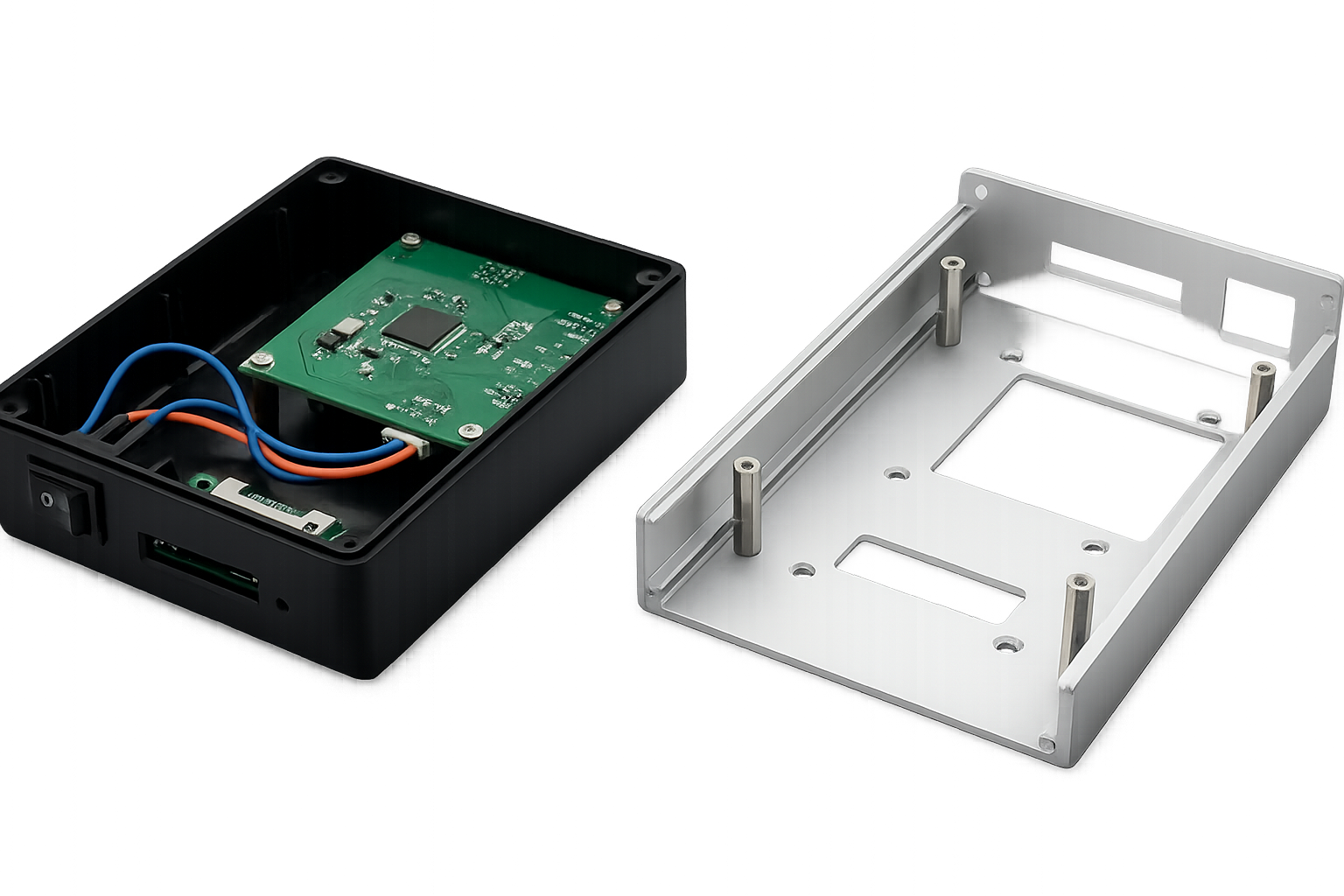

Comprehensive Enclosure Solutions
// METALLIC: Stamped Components & Aluminum Casting
// PLASTICS: High-Precision Injected Plastic Parts
// PRECISION: CNC Machining & Aluminum Extrusion
// INDUSTRIAL: Sheet Metal Cabinets & Internal Assemblies
INDUSTRIAL_CABINET_UNIT_V2.1.CAD
Industrial-Grade Cabinet Engineering
// FINISHING: Metal Plating & Corrosion Resistance
// HYBRID: Sheet Metal fused with CNC & Die-Cast Parts
// POWER: Integrated Busbars & Current Management
// EMI/EMC: Minimized Electrical Interference
THERMAL_COLDPLATE_UNIT_REV_3.2.CAD

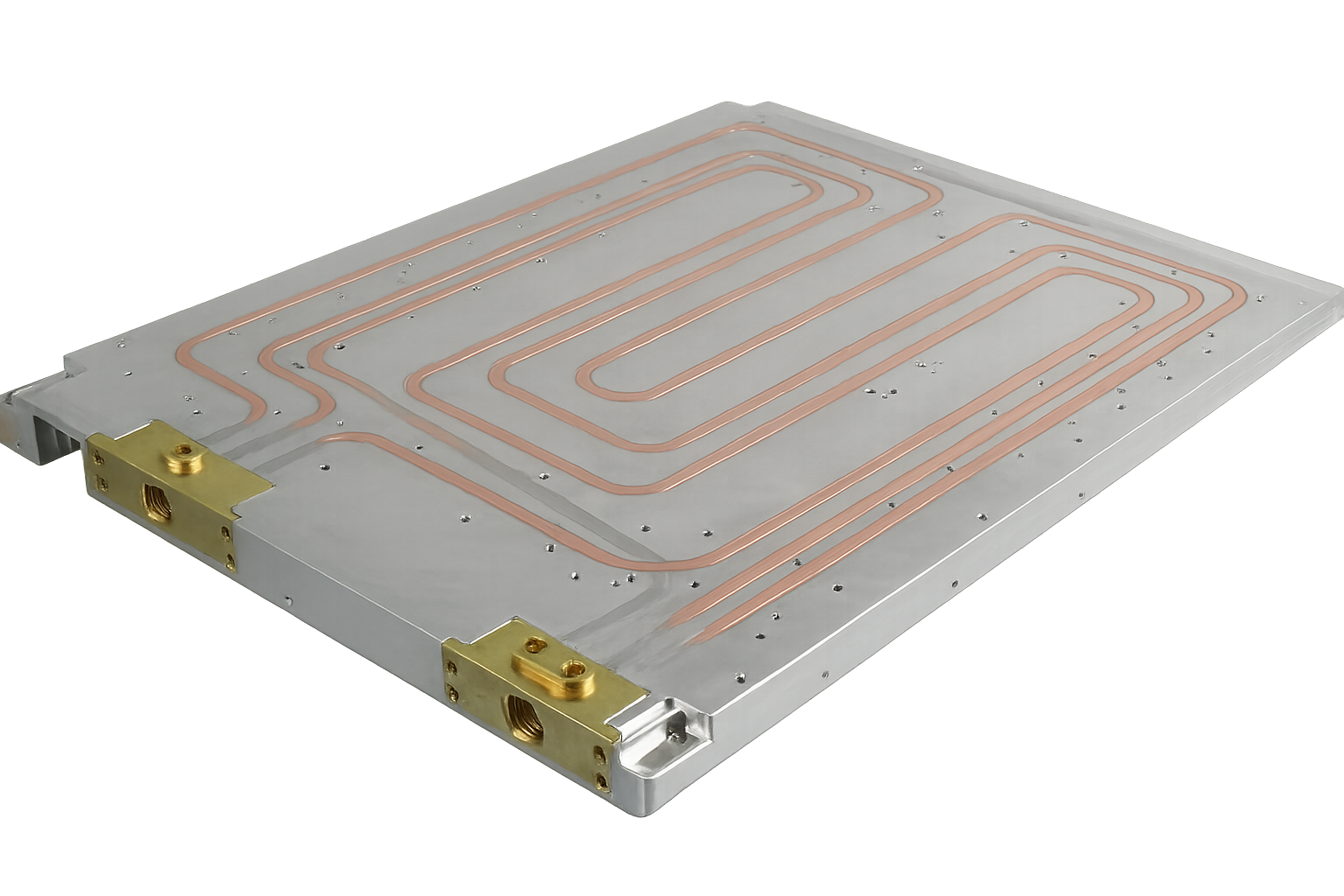

High-Performance Coldplate Design
// LIQUID_COOLING: Aluminum Liquid Coldplates optimized for heat dissipation.
// HYBRID: Copper Tube integration for superior thermal conductivity.
// JOINING: Expertise in Friction Stir Welding (FSW) and specialized brazing.
// TARGET: Cooling solutions for high-performance power-dense electronics.
INJECTION_MOLD_UNIT_REV_2.0.CAD

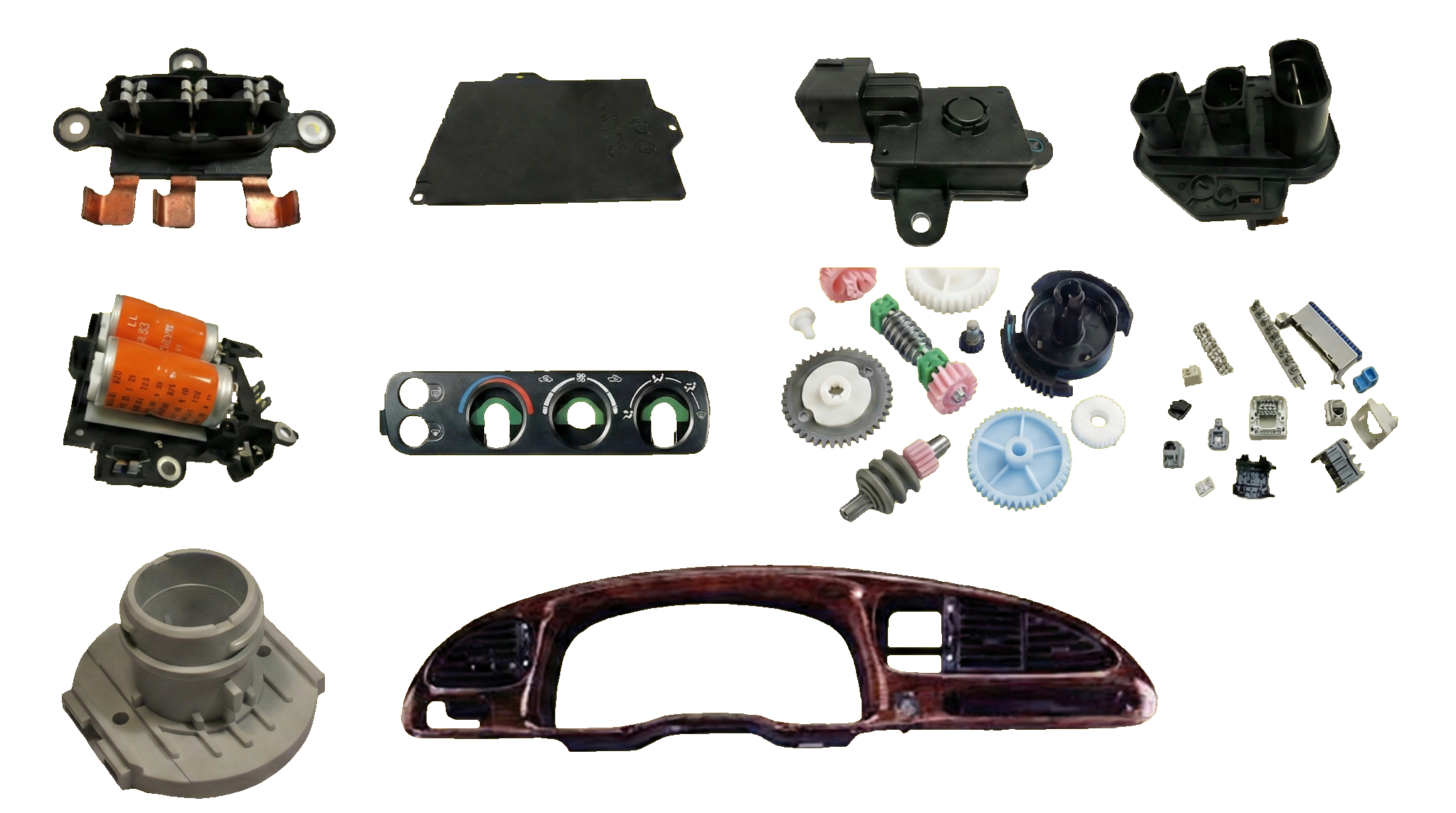

Precision Injected Plastic Solutions
// MATERIALS: Engineering-grade resins including ABS, PC, Nylon, and PEEK.
// DFM_OPTIMIZED: Precision tooling focused on draft angles and gate placement.
// ADVANCED: Expert integration of metal inserts and multi-material overmolding.
// VERSATILE: High-precision housings and cost-effective thermoformed panels.
